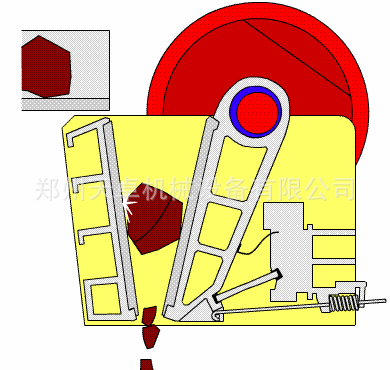

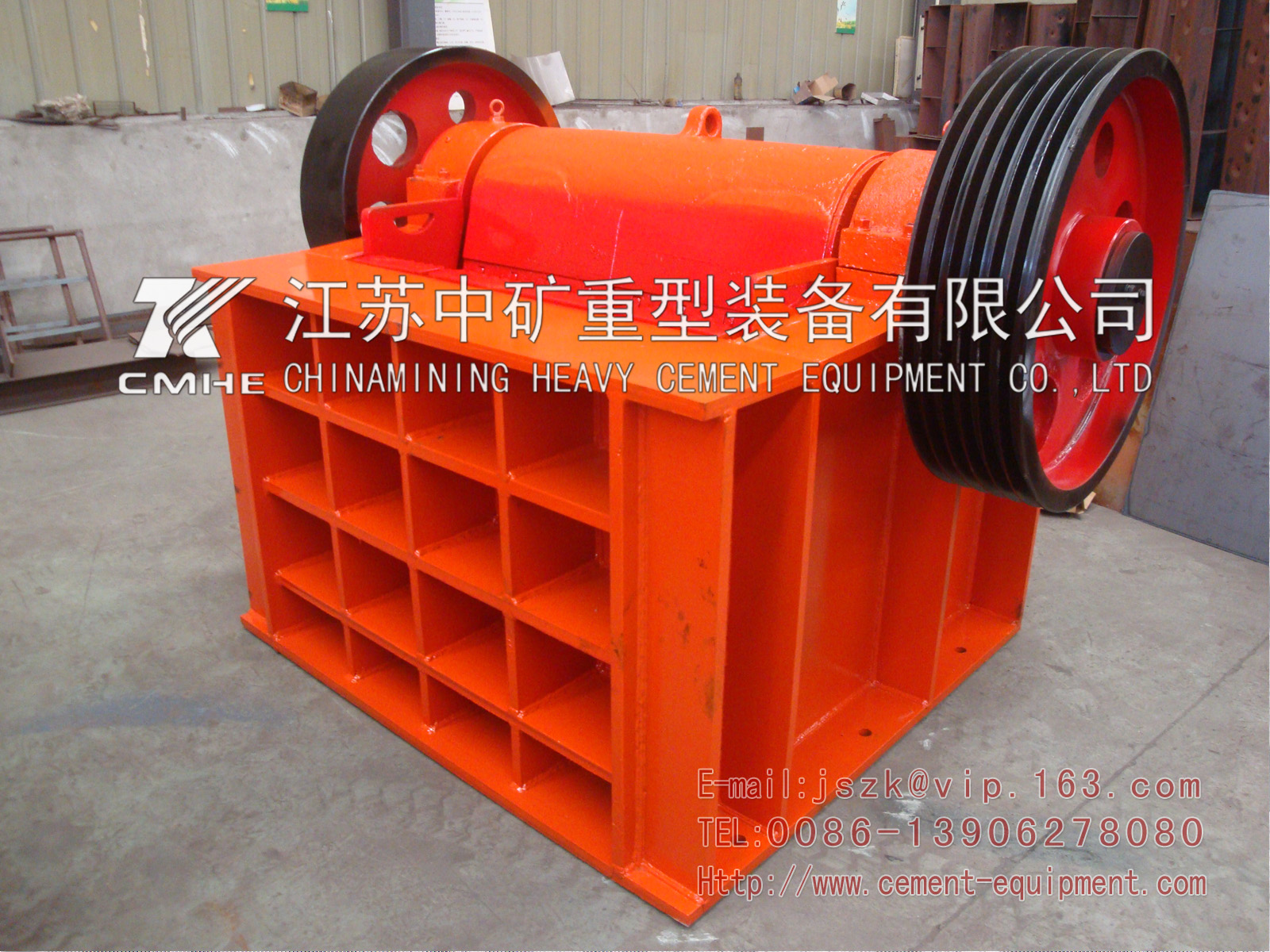

PE顎式破碎機

PE系列顎式破碎機采用高錳鋼材料制造，重量輕，強度高，能耗低，大大減少設備運行成本，而且進料粒度大，產品粒度均勻。該產品低轉速，高穩定性，大產量，低運行成本，充分保證了礦山、冶金、建材、化工等行業客戶的破碎需求。

PE jaw crusher adopts high manganese wear-resistant steel. It has the advantages of light weight, high strength and stiffness, and low energy consumption, It not only greatly reduces the operating costs of equipment. but also the feeding particle size is large, and product particle size is uniform.

With is low revolution speed, high stability, large output, low operation cost, and fully guarantee the mining, metallurgy, building materials, water conservancy, chemical industry and other industries crushing needs of clients.

產品描述|Product Features

■經典的設計、制造技術及材料、經久耐用

■恰當?shù)那恍驮O(shè)計

■排料口調整方便靈活

■可供選擇的多種顎板

■選用耐用的軸承

■高品質鑄鋼動顎總成

The most classical design, the best manufacturing technique and materials. durable The providential cavity design The adjustment of discharge opening is convenient and flexible

A variety of jaws are optional Select the most durable bearings High-quality cast steel movable jaw assembly

技術參數表|Technical Date

型號	進料口尺寸	進料粒度上限	出料口調整范圍	生產能力(t/h)	功率 (kw)	重量 (t)
PE-150×250	150×250	130	10-40	0.96-4.8	5.5	0.81
PE-250×400	250×400	210	20-80	5-21	15	2.8
PE-400×600	400×600	340	40-100	16-64	30	6.5
PE-500×750	500×750	425	50-100	45-100	55	10.3
PE-600×900	600×900	500	65-160	48-120	55/75	15.5
PE-750×1060	750×1060	630	80-140	115-208	110	27.02
PE-800×1060	800×1060	650	100-200	136-228	110	28.4
PE-870×1060	870×1060	670	200-260	290-336	110	30.5
PE-900×1200	900×1200	750	100-200	144-304	132	50
PE-1000×1200	1000×1200	850	195-265	315-342	132	50.6
PE-1200×1500	1200×1500	950	150-350	300-800	220	83
PE-1500×1800	1500×1800	1200	220-350	450-1000	355	122
PEX-150×750	150×750	120	18-48	8-25.6	15	3.5
PEX-250×1000	250×1000	210	25-60	16-51.2	37/30	6.5
PEX-250×1200	250×1200	210	25-60	20-60	37	7.7
PEX-300×1300	300×1300	250	20-90	20-104	75	11
PEX900×1200Ⅱ	900×1200	750	100-200	144-304	132	45.8

V型腔鄂式破碎機(PEV )技術參數表I Technical Date

型號		PEV40	PEV42	PEV55
下料口	mm	1000*625	1070*760	1400*760
功率上限	kw	90	110	150
功率上限	hp	120	150	200
滑輪聚晶金剛石	mm	11908SPC	1390 10SPC	1645 10SPC
重的電梯	kgs	5525	8020	9700
重的電梯	1bs	12175	17670	21370
總重量	kgs	11820	17300	23000
總重量	1bs	26050	38130	50700
轉速上限		280	250	250

型號	單位 mm	近似吞吐量計量噸/小時，和短期噸/小時1噸[mtph ] = 22041 1 shprtnt[ mtph ] = 20001b
		封閉環境
		50	63	75	88	100	115	125	140	150	165	175	200	225
PEV40	Mtph	85-95	105-120	125-146	150-165	170-190	200-220	220-240	250-275	260-290	285-325
PEV40	Stph	95-105	115-135	140-160	165-185	190-215	225-245	245-260	275-310	295-325	320-365
PEV42	Mtph			135-160	165-185	190-210	220-240	240-265	275-305	290-320	315-355	355-380	390-430
PEV42	Stph			155-175	180-205	210-235	245-270	270-295	205-340	325-360	355-400	375-425	435-480
PEV55	Mtph				230-255	265-295	310-340	340-370	380-425	405-450	440-500	470-530	545-605	610-680
PEV55	Stph				255-290	295-330	345-380	380-410	430-475	455-500	495-560	525-595	610-675	685-760
